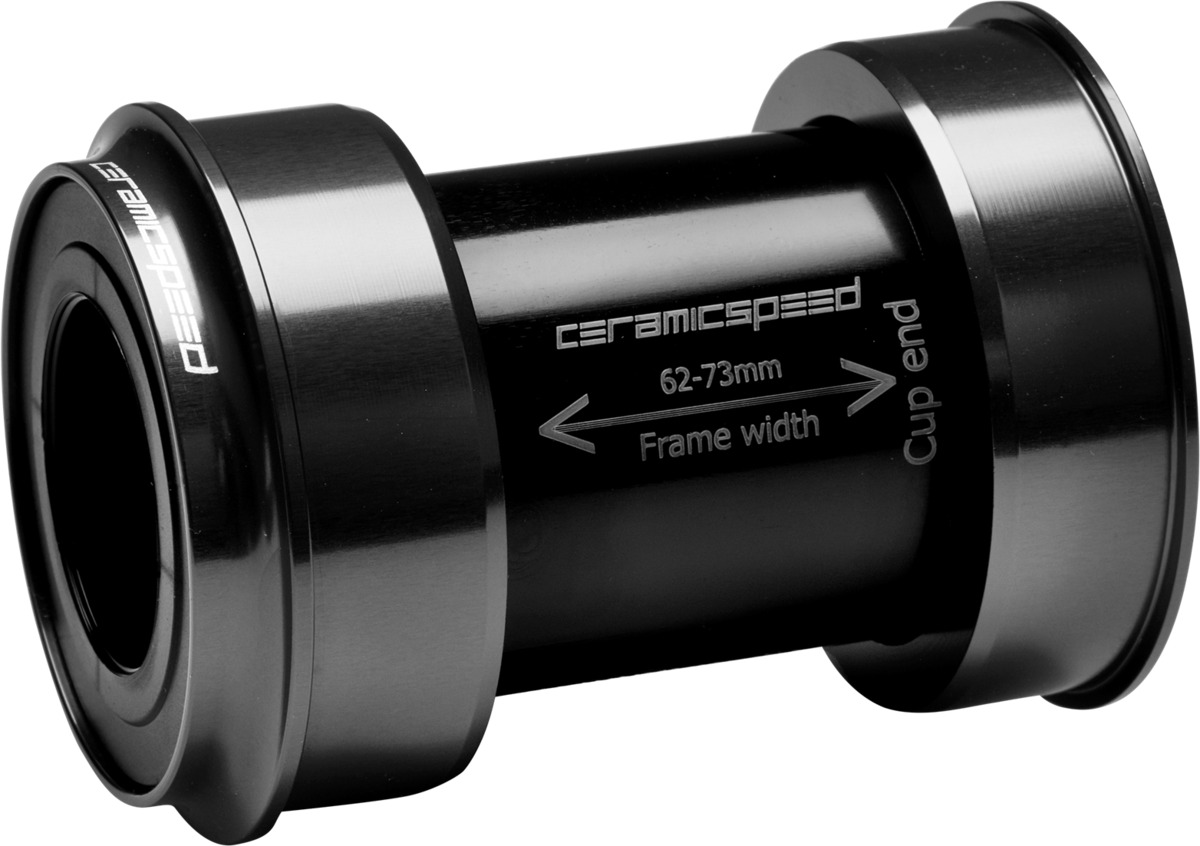

CeramicSpeed PF30A Bottom Bracket for SRAM GXP

CeramicSpeed PF30A Bottom Bracket for SRAM GXP
Color: Black
Series: Standard
Model: PF30A
Spindle: GXP
Width: 73mm
Please select options Unavailable
Sorry, this item is currently not available. Please check back or reach out for future availability.


PF30A is a Cannondale-specific standard for their 73mm wide bottom bracket shells. This CeramicSpeed kit makes it possible to install Quarq and SRAM cranks into some Cannondale frames.

CeramicSpeed bearings come installed in two cups and are connected through the shell via a spacer tube. It is available with either Standard or Coated Bearings. Both have super-round CeramicSpeed balls and hardened-steel races. The Coated have an additional attribute: a 3-micron-thick metallic layer over the races. This addition makes the races harder and smoother, lowering drag and increasing life.

The unique PF30A shell is 73mm wide, 46mm diameter and is specific to Cannondale. Cups and bearings adapt the shell so it is compatible with 24/22mm diameter Quarq and SRAM cranks.

Our CeramicSpeed Standard Bearings generate just 0.3-0.4 watts of frictional drag. That's a reduction in drag of 75% compared to stock bottom brackets. This is the result of great design: hardened-steel races combined with CeramicSpeed Balls that are 100% smoother and 15% harder than the ceramic competition. They also last longer.

Coated Bearings last even longer and feature even lower drag. Life increases by 60% and drag drops by 50% compared to our Standard.

All Round Grease comes pre-installed in the bearings. It can be replaced for lower-drag TT and Track Grease, or higher-durability LongLife Grease, which adds a bit of drag but stays in the bearing when riding through messy conditions.

In The Box:
- 2 cups with bearings installed
- 2 dust covers
- 1mm spacers
- 0.5mm spacer
- GXP wave washer
- Spacer tube
- 10ml syringe of CeramicSpeed All Round Grease
- Sticker sheet


Part Numbers

Option UPC MPN
Black / PF30A / Standard / GXP / 73mm 05711050040278 104898
