CeramicSpeed PF30A Bottom Bracket for Shimano

CeramicSpeed PF30A Bottom Bracket for Shimano
Please select options Unavailable
Sorry, this item is currently not available. Please check back or reach out for future availability.


PF30A is a Cannondale-specific standard for their 73mm-wide bottom bracket shells. This CeramicSpeed kit makes it possible to install Shimano and other 24mm diameter cranks into a Cannondale frame.

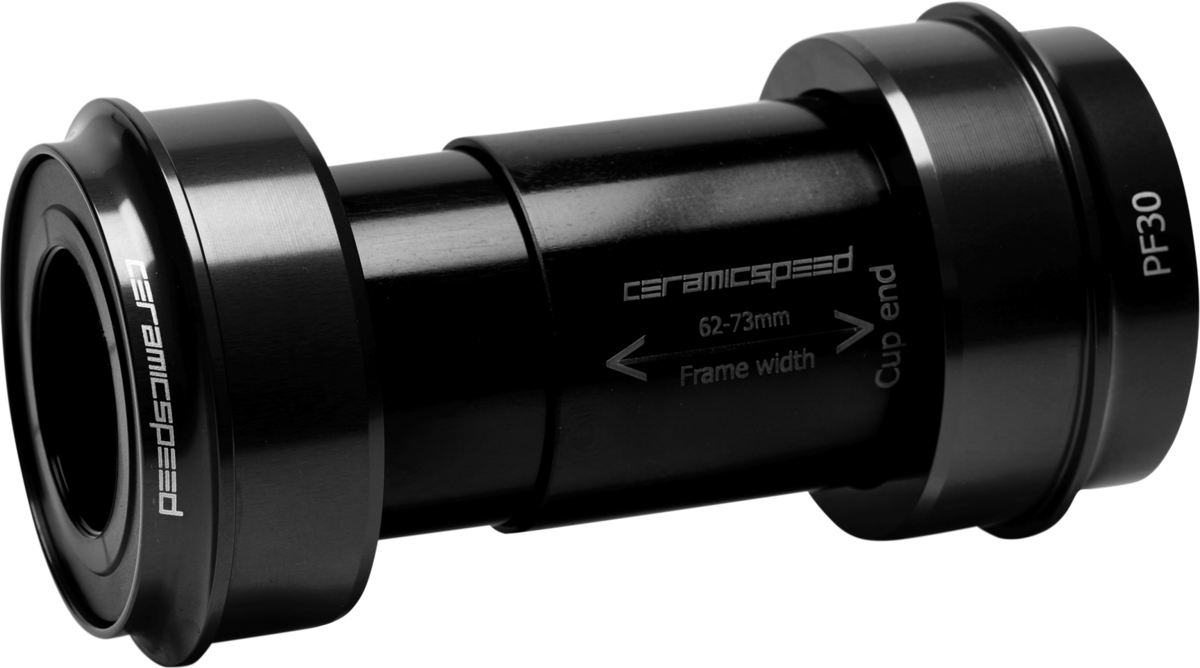

CeramicSpeed Bearings come installed in two cups and are connected through the shell via a spacer tube. It's available with either Standard or Coated Bearings. Both have super-round CeramicSpeed Balls and hardened-steel races. The CeramicSpeed Coated bearings have an additional attribute: a 3-micron-thick metallic layer over the races. This addition makes the races harder and smoother, lowering drag and increasing life.

The unique PF30A shell is 73mm wide with a 46mm diameter. These cups and bearings adapt the shell so it is compatible with Shimano, FSA, and other cranks with 24mm spindles.

Our CeramicSpeed Standard Bearings generate just 0.3-0.4 watts of frictional drag. That's a reduction in drag of 75% compared to stock bottom brackets. This is the result of great design: hardened-steel races combined with CeramicSpeed Balls that are 100% smoother and 15% harder than the ceramic competition. They also last longer.

The CeramicSpeed Coated Bearings last even longer and feature even lower drag. Life increases by 60% and drag drops by 50% compared to our CeramicSpeed Standard Bearings.

All Round Grease comes pre-installed in the bearings. It can be replaced for lower-drag TT and Track Grease or higher-durability LongLife Grease, which adds a bit of drag but stays in the bearing when riding through messy conditions.

In The Box:
- 2 CeramicSpeed bearings pressed into cups
- 2 installed dust covers
- Spacer tube
- 10ml syringe of All Round Grease
- Installation tool
- Sticker Sheet


Part Numbers

Option UPC MPN
Black / PF30A / Standard / 24mm / 73mm 05711050040230 104894
